M PUMPS

Extremely wide Centrifugal Pump range, meeting and exceeding international standards
(DIN EN 22858 – ISO, ANSI 673.3, API 685 2nd Ed & API 610 11th Ed) and available in both Magnetic Drive and Traditional Mechanical Seal Design.

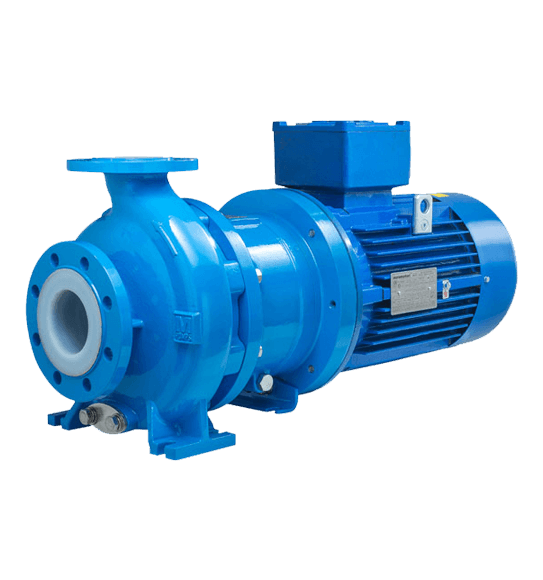

These pumps can be supplied both with Close Coupled and Long Coupled version (with or without baseplate). Metallic wetted parts from AISI (STD), Duplex, Hastelloy C, Titanium etc. Several non-metallic models for corrosive and ultra pure application (PFA lined cast iron pump heads, vertical pumps with solid plastic, injection molding both in PP and PVDF.)

M PUMPS Process Department has the following attributes

  • Experienced, skilled multilingual application engineers
  • Technical department with advanced CAD software and FEM Analysis
  • Internal R&D for custom-made pumps requirement
  • Assembly department with dedicated team and supervision
  • Europe’s largest and most fully equipped centrifugal pump testing
  • Experienced engineering team for contractual technical documentation and witnessing

ENQUIRE NOW

MAIN DESIGN FEATURES OF M PUMPS

M Pumps Heavy Duty Process Pumps are horizontal, radially split, centreline or non-centreline supported, single entry overhung impeller, designed in a back pull-out configuration according to latest edition of API 610 Std or ISO 2858 – 5199

  • Back pull-out construction for easy maintenance.
  • Choice of multiple impellers for optimum efficiency over a wide operating range. Coverage includes more than 100 different hydraulics.
  • Twin volute configuration over 8”impeller and 2” discharge nozzle size, to minimise radial loads and shaft deflections.
  • Centreline feet mounting for high temperature stability or standard foot mounted ISO configuration
  • Bearing bracket geometry optimised in order to eliminate water cooling system, even for high temperature applications up to 750 °F (400°C) or 390 °F (200°C) for ISO pumps
  • Casing, bearing frame and baseplate stiff enough to assure minimum shaft deflections under heavy nozzle load conditions, to improve seal and bearings life.
  • Wear rings and balance holes optimised for an extended life under the most adverse suction conditions
  • Seals and sealing systems in accordance to API 682 Std – UNI 3069

For more information on other units please send us a request.

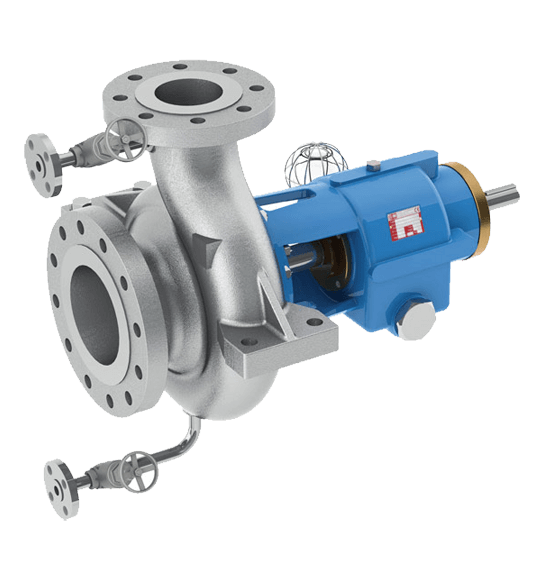

m pump
    Max Capacity: 1,100 l/sec (4000 m3/hr)
    Delivery Head: 240 m
    Speed: 1450 / 2900 rpm
    Press. Syst: 150 bar
    Temperature: to +400 °C

CN-MAG-M-API-685

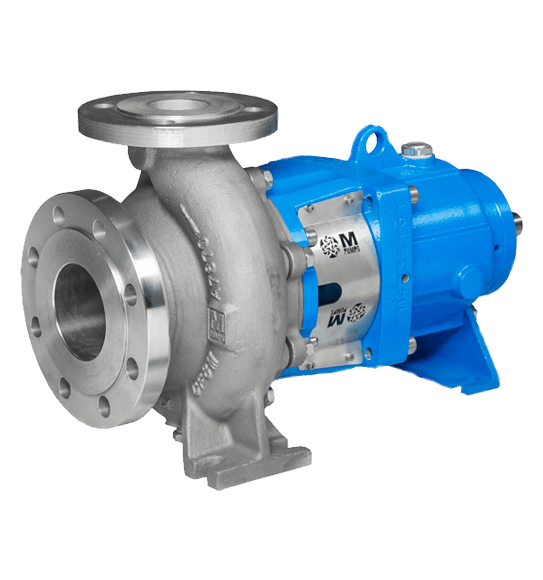

m pump
    Max Capacity: 1,100 l/sec (4000 m3/hr)
    Delivery Head: 240 m
    Speed: 1450 / 2900 rpm
    Press. Syst: 50 bar
    Temperature: +400 °C

CN-SEAL-M-API610

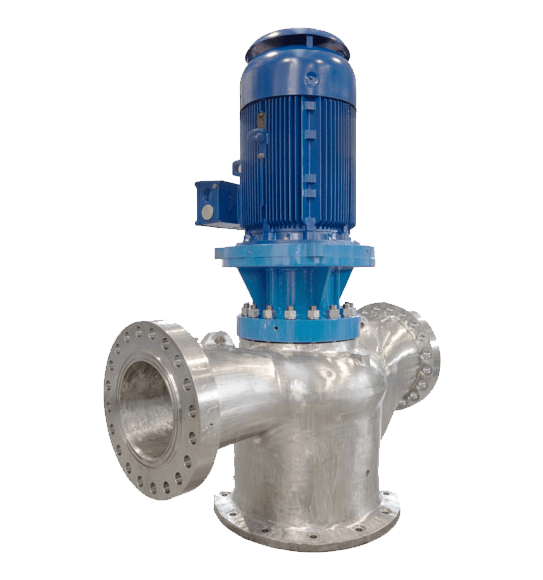

M pump
    Max Capacity: 1,100 l/sec (4000 m3/hr)
    Delivery Head: 240m
    Speed: 1450 / 2900 rpm
    Press. Syst: 50 bar
    Temperature: +400 °C

CN-SEAL-MV-API-610

m pump
    Max Capacity: 278 l/sec (1000 m3/hr)
    Delivery Head: 220 m
    Speed: 1450 / 2900 rpm
    Press. Syst: From PN 16 to PN 50
    Temperature: From -30°C up to 200°C for high temperature version

CN-SEAL-M ISO

m pump
    Max Capacity: 140 l/sec (500 m3/h)
    Delivery Head: 120 m
    Speed: 1450 / 2900 rpm
    Press. Syst: PN 4
    Temperature: From -184°F (-120°C) to + 482°F(+250°C)

CNV MAG-M

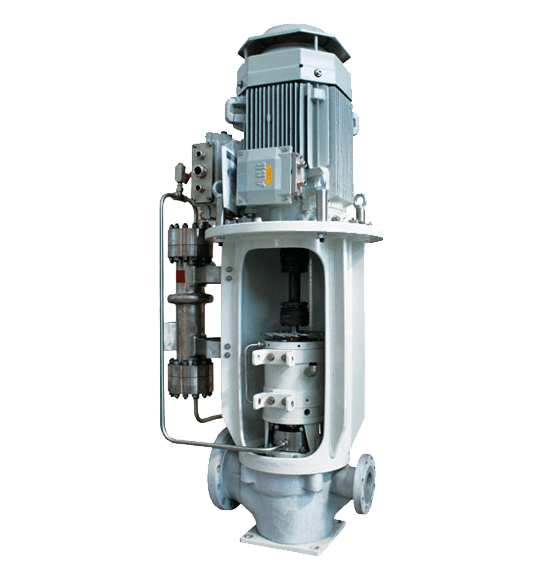

M pump
    Max Capacity: 1,100 l/sec (4,000 m3/hr)
    Delivery Head: 300 m
    Speed: 1450 / 2900 rpm
    Press. Syst: 150 bar
    Temperature: to +400 °C

CNV-MAG-MV-API685

m pump
    Max Capacity: 1,100 l/sec (4000 m3/hr)
    Delivery Head: 220 m
    Speed: 1450 / 2900 rpm
    Press. Syst: 150bar
    Temperature: +400 °C

CN MAG MV API 610

m pump
    Max Capacity: 1,100 l/sec (4000 m3/h)
    Delivery Head: 220 m
    Speed: 1450 / 2900 rpm
    Press. Syst: From PN 16 to PN 50
    Temperature: Temperature range: from -185 °F (-120 °C) to +662°F (+350°C)

CN-MAG-M

M pump
    Max Capacity: 25 l/sec (90 m3/h)
    Delivery Head: 25 l/sec (90 m3/h)
    Speed: 1450 / 2900 rpm
    Press. Syst: PN 16
    Temperature: From -120°F to +392°F (-85 °C to +200 °C)

CL-MAG-M

m pump
    Max Capacity: 1,100 l/sec (4000 m3/h)
    Delivery Head: 240 m
    Speed: 1450 / 2900 rpm
    Press. Syst: 150 bar
    Temperature: +400 °C

WN-MAG-M-API685
